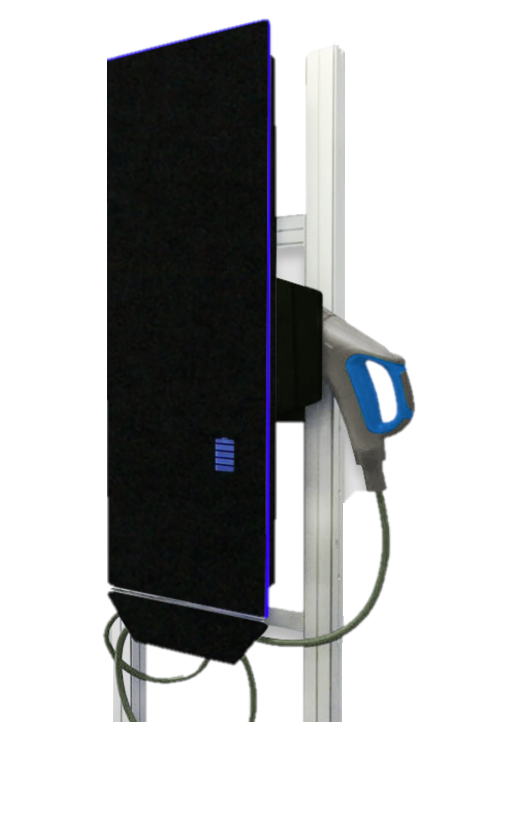

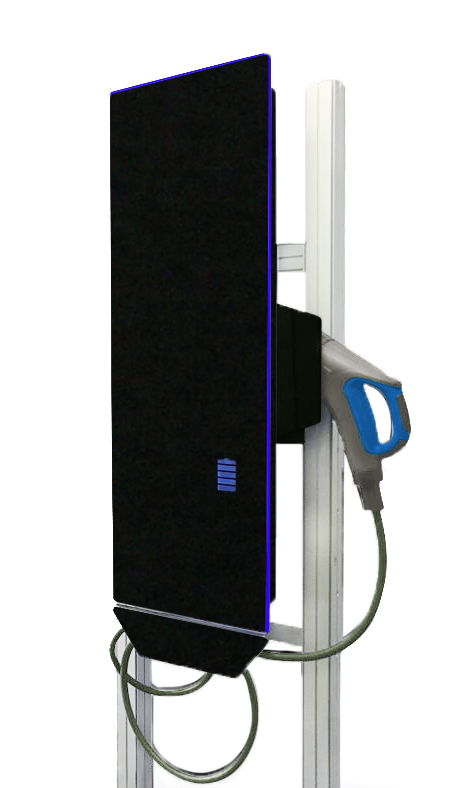

11kW EV DC Charger

  • Input Voltage (VAC): 340 - 530VAC
  • Output Power (kW): 11kW
  • Output Voltage (VDC): 200 - 450VDC
  • Connections CCS Type 2 plug

The 11kW EV DC Charger is a high efficiency and slim electric vehicle charger for CCS compliant vehicles. It delivers up to 11kW of DC to quickly recharge the vehicle battery without requiring a heavy, costly, high power on-board charger in the vehicle. Its slim form factor makes it ideal for installations garages, car ports and even public areas without taking up unnecessary space.

Please contact us for partnership enquiries. Preferred partners include car manufacturers, charger manufacturers and EV charging solution providers.

  • 11kW Output
  • CCS Compliant
  • Reduces Overall System Costs
  • No In-Vehicle Power Converter Required
  • App Control – Wi-Fi Connection
  • Mode-4 charging
  • Efficiency >95%
  • Three phase Input (Single phase coming soon)
  • Indoor / Outdoor


11kW EV DC Charger brochure
11kW EV DC Charger datasheet

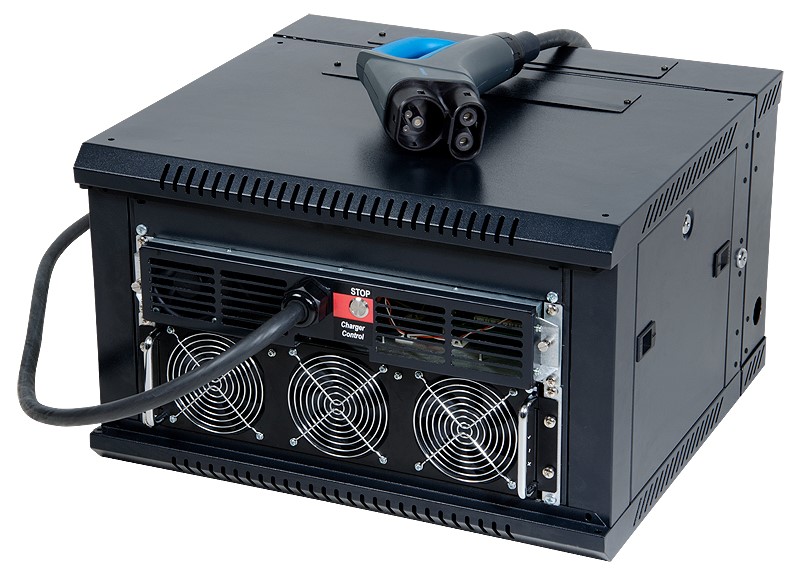

RT15 EV Charger Kit

  • Input Voltage (VAC): 323 - 419, 3-phase 4-wire (no neutral)
  • Output Power (kW): 30.0kW
  • Output Voltage (VDC): 450VDC

The ‘RT15 EV Charger Kit’ provides EV Charger Manufacturers access to a development platform for EV DC Charging, using the RT15 module(s), before bringing it to full production. The Charger Kit combines power electronics from Rectifier Technologies and IoTecha’s control interface. It comes with:

  • RT15 30kW rectifier | 3 Phase – 380, 400, 480 VAC Input | 450VDC 30kW Output
  • Additional RT15 modules can be purchased to be operated in parallel to build higher powered systems.
  • IoTecha’s CCSoM with Pilot Line Control, ISO/IEC 15118, OCPP 1.6J, Rectifier Control, MQTT Client, and other Key Elements.
  • IoTecha’s I2P2 Cloud Platform providing Over-the-Air Firmware updates, Asset Management, Status Monitoring, and Remote OCPP Client Configuration.


RT15 EV Charger Kit Brochure
EV DC OEM Starter Kit Datasheet

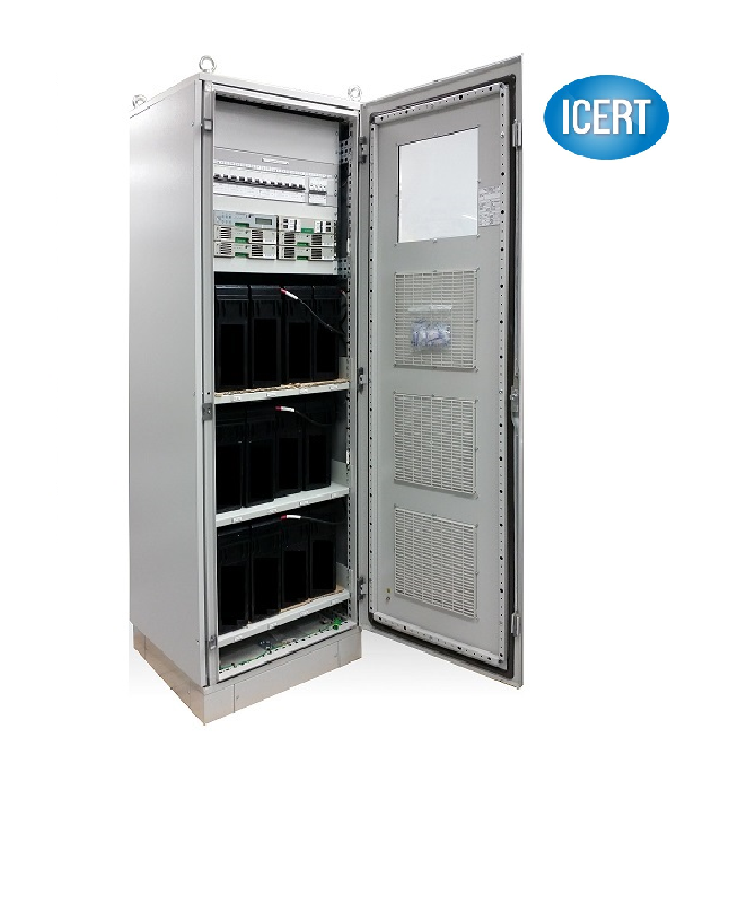

ICERT 1000 – Secure Battery Charger

  • Input Voltage (VAC): 85 - 300VAC or 147 - 520VAC
  • Output Power (kW): max 19.2kW (higher power available)
  • Output Voltage (VDC): 12VDC, 24VDC, 32VDC, 48VDC, 110VDC, 240VDC

The ICERT 1000 is a high-performance battery charger and DC UPS, built up of modular switched mode rectifiers and a control system. Its cutting-edge technology provides high efficiency in a compact package. The concept of modular power electronics means that the ICERT 1000 is easily scalable in output, highly reliable (zero downtime) and reduces spare parts inventory.

  • IP43 Grey (RAL7035) enclosure
  • Optional Battery Shelves
  • Integrated AC and DC Distribution
  • Automatic Battery Disconnect
  • Dimensions – 1900(H)x600(W)x600(D) mm
  • Earth Leakage Detection
  • SNMP, Modbus and DNP3 Available
  • Automatic Battery Discharge Test
  • Optional Battery Cell Monitoring and Mains Monitoring


Brochure & Ordering Guide
Drawings (RT12 120V System)
Drawings (RT9 24V + Battery Shelves System)

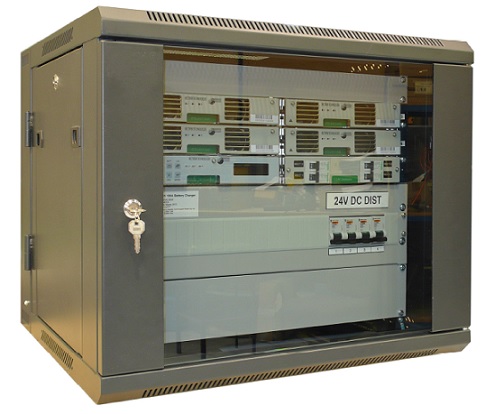

Wall Mount Power Systems

  • Input Voltage (VAC): 85 - 300VAC or 147 - 520VAC
  • Output Power (kW): max 9.6kW, 5.6kW (for 12V & 24V)
  • Output Voltage (VDC): 12VDC, 24VDC, 48VDC, 110VDC, 240VDC

The Wall Mount Power Systems are integrated with either RT9, RT11 or RT12 modules to offer a high-performance battery charger and DC UPS. These chargers are compact and suitable for wall mounting in industrial environments.

  • IP21 wall mountable enclosure
  • Integrated AC and DC Distribution
  • Automatic Battery Disconnect
  • Earth Leakage Detection
  • SNMP, Modbus and DNP3 Available
  • Automatic Battery Discharge Test
  • Optional Battery Cell Monitoring and Mains Monitoring


System Drawings

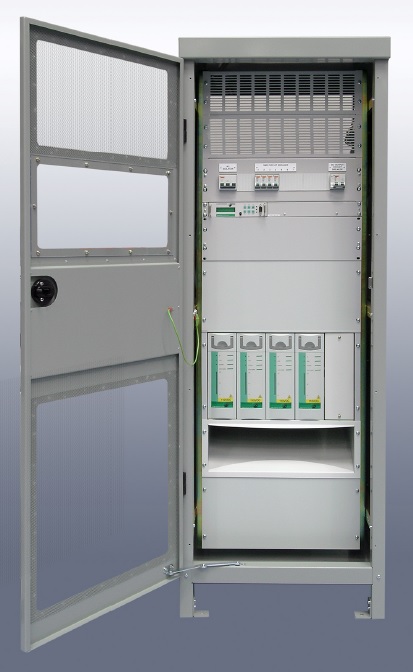

Convection Cooled Power Systems

  • Input Voltage (VAC): 100 - 240VAC or 173 - 415VAC
  • Output Power (kW): 7.0 - 14.0kW
  • Output Voltage (VDC): 24VDC, 48VDC, 110VDC

In a Convection Cooled Power System, you will find RT4B convection cooled (no fans) switched mode rectifiers operating in parallel. Whilst fans can be optionally installed in the system, it is typically used without one to maintain a low audible noise environment suited to telecommunications and switch rooms.

  • Naturally Cooled (No Fans)
  • Indoor Cabinet rated at IP31
  • Integrated AC and DC Distribution
  • Automatic Battery Disconnect
  • Earth Leakage Detection
  • SNMP, Modbus and DNP3 Available
  • Automatic Battery Discharge Test
  • Optional Battery Cell Monitoring and Mains Monitoring


System Drawings
