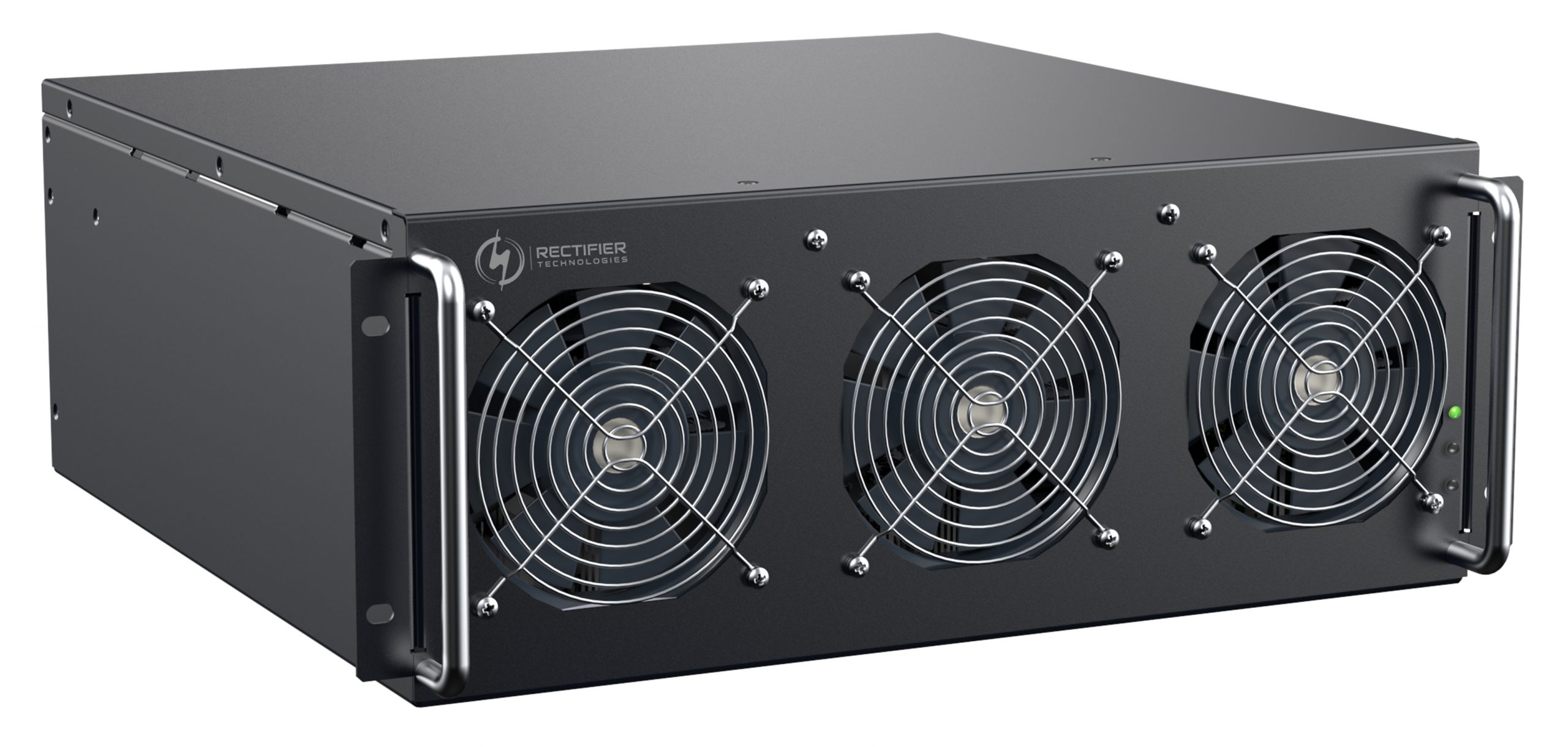

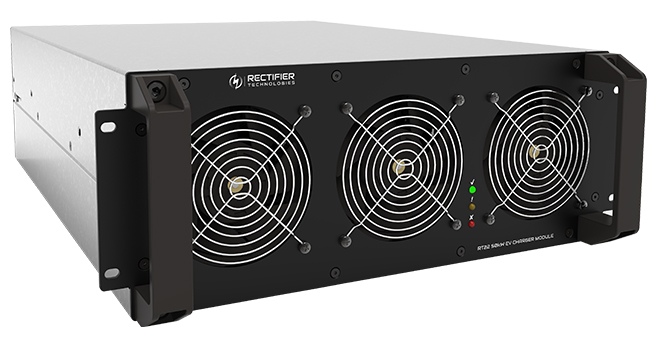

50kW (coming soon 2020)

  • Input Voltage (VAC): 380 - 480VAC
  • Output Power (kW): 50.0 kW
  • Output Voltage (VDC): 200 - 920VDC

The 50kW EV Charger Module is a high-efficiency AC-DC power module designed to charge electric vehicles (EVs) using DC from a 3-phase supply.

Key features:

  • Scalable from 50kW to 500kW or more
  • Max efficiency >96%
  • Modular & Hot-pluggable
  • Weight <50kg
  • Dimensions: 482.6(W) x 175(H) x 440(D) mm

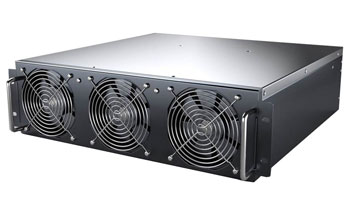

RT 15

  • Input Voltage (VAC): 323 - 419VAC, 3-phase 4-wire (no neutral)
  • Output Power (kW): 29.0kW
  • Output Voltage (VDC): 240, 400, 450VDC

The RT15 is a 3-phase, 4-wire (no neutral) high voltage switched mode rectifier offering high-reliability and high-efficiency (GREATER than 96%), suitable for Electric Vehicle Charging, Internet Data Center Power Supplies and DC UPS.

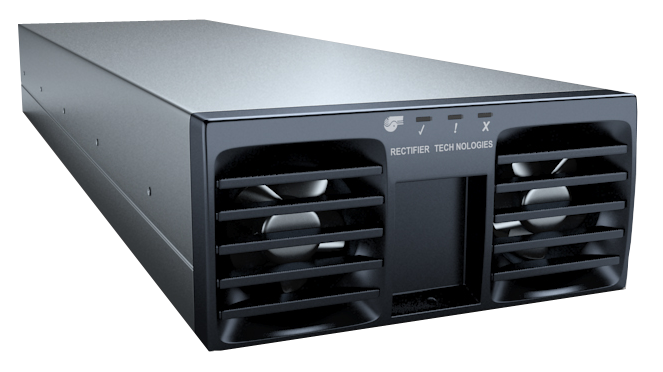

RT 18

  • Input Voltage (VAC): 187 - 242VAC
  • Output Power (kW) 8.6kW
  • Output Voltage (VDC): 240, 400VDC

The RT18 is a single phase, high voltage switched mode rectifier offering high-reliability and high efficiency at 96%.

It is suitable for applications such as Electric Vehicle Charging, Internet Data Center Power Systems and DC UPS.

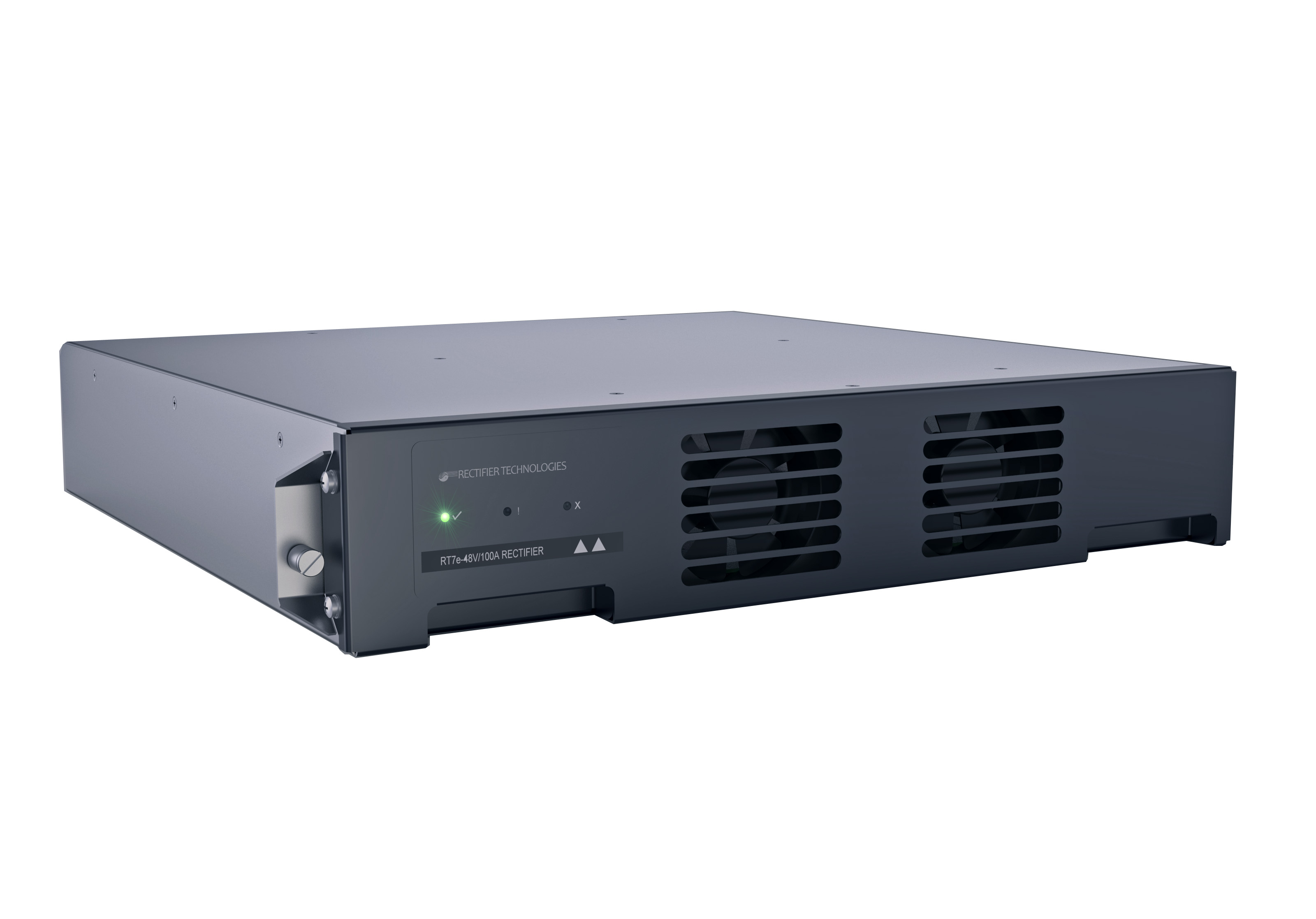

RT7e

  • Input Voltage (VAC) 304 - 530VAC
  • Output Power (kW) 6kW
  • Output Voltage (VDC) 43 - 60VDC

The RT7 3 phase switched mode rectifier has been one of RT’s best seller since 2002. Its unique 3 phase input handling and unparalleled reliability has captured the attention of users throughout the telecoms and defence industries. Now with the RT7e, INCREASED efficiency and REDUCED weight is only a ‘plug in’ away.

The RT7e is fully backward compatible with the original RT7, offering users a hassle free upgrade in efficiency. Simply remove your existing RT7 and replace them with the new RT7e, and your system experiences an instant increase in efficiency to >97% with NO DOWNTIME.

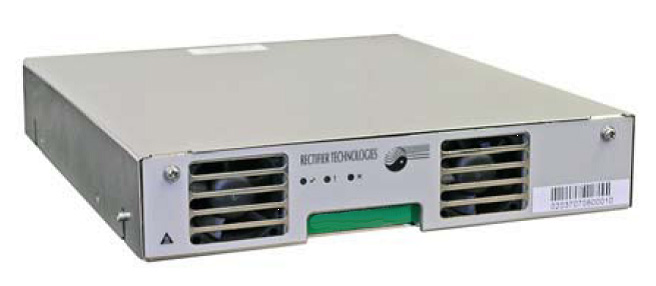

RT12

  • Input Voltage (VAC): 100 - 240VAC
  • Output Power (kW): 2.4kW
  • Output Voltage (VDC): 120, 240VDC

The RT12 module, derived from the RT9 compact series, is a 2.4KW single phase, switched-mode rectifier known for its robustness and suitability for industrial applications.  Its output voltages in 60VDC (output current de-rated), 120VDC and 240VDC are commonly used in substations as switch-tripping battery chargers.

RT12 modules can be connected in parallel to make high powered systems and can be used in conjunction with a battery to provide an uninterruptible DC power system (UPS).

RT11

  • Input Voltage (VAC): 100 - 240VAC
  • Output Power (kW): 2.4kW
  • Output Voltage (VDC): 48VDC

The RT11 module, derived from the RT9 compact series, is a 2.4KW single phase, switched-mode rectifier known for its robustness and suitability for industrial applications. The RT11 is commonly found in critical and remote sites, trusted for its extremely low field failure rate.

RT11 modules can be connected in parallel to make high powered systems and can be used in conjunction with a battery to provide an uninterruptible DC power system (UPS).

RT9

  • Input Voltage (VAC): 100 - 240VAC
  • Output Power (kW): 1.4kW
  • Output Voltage (VDC): 12, 24, 32, 48VDC

The RT9 module was the pioneer of the ‘Compact Series’ of rectifiers known for its extremely low field failure rates and have been designed into many critical applications where reliability and low-downtime is valued.

RT9 a 1.4KW single phase, switched mode rectifier commonly found in critical and remote sites, including aviation and defence applications, trusted for its extremely low field failure rate. It can be connected in parallel to make high powered systems and can be used in conjunction with a battery to provide an uninterruptible DC power system (UPS).

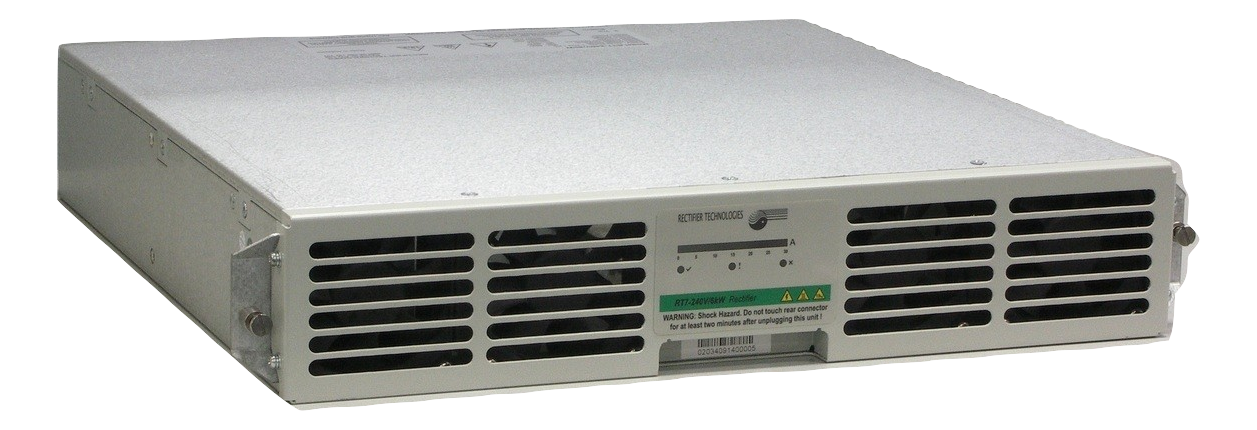

RT7

  • Input Voltage (VAC): 320 - 530VAC
  • Output Power (kW): 6.0kW
  • Output Voltage (VDC): 48, 120, 240VDC

The RT7 is a 3 phase (no neutral), ACTIVE power factor corrected, switched mode rectifier designed to provide up to 6kW of output power. Developed initially for the telecom industry, its derivations in 120V and 240V found application in defence, utilities and oil & gas.

An update of this stable platform is now available in the RT7E, offering a full backward compatibility at greater than 97% efficiency.

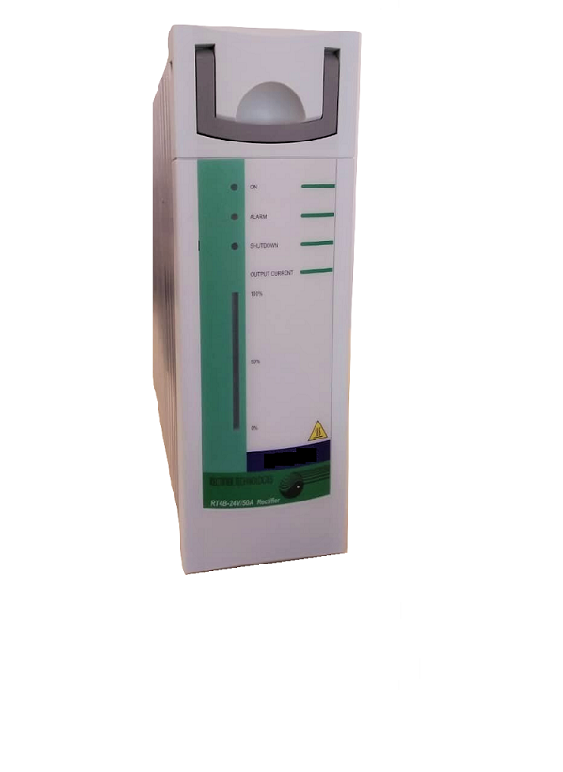

RT4B

  • Input Voltage (VAC): 150 - 275VAC
  • Output Power (kW): 1.4kW
  • Output Voltage (VDC): 24, 48, 110VDC

The RT4B is a convection cooled switched mode rectifier module designed to provide up to 1.4KW of power. It can be used with or without a cooling fan. This rectifier has been designed for use in conjunction with a battery to provide an uninterruptible DC power system (UPS). The low noise and high reliability make it ideally suited to telecommunications and switch room environments.
