Powershelves

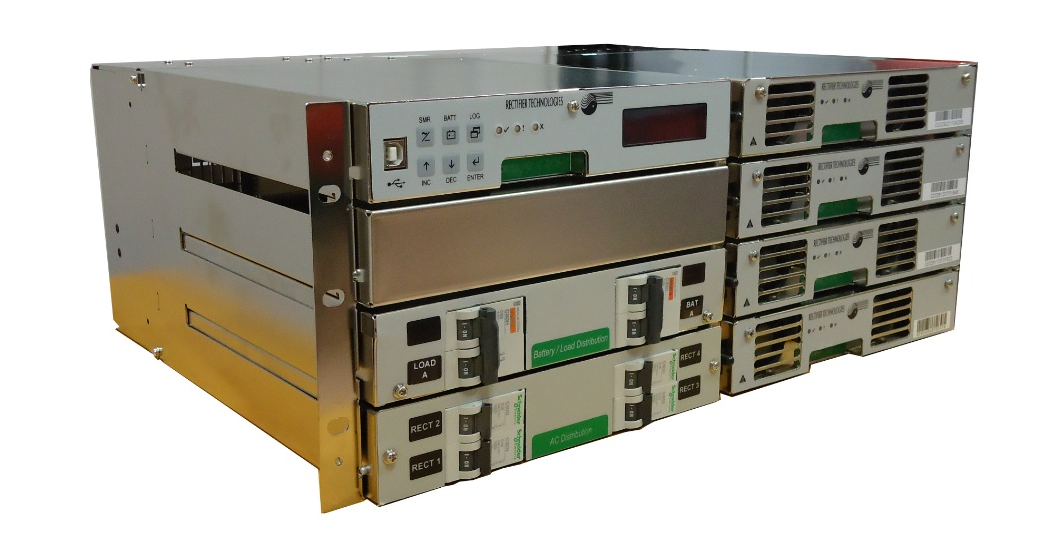

RT12 HVDC UPS

  • Input Voltage (VAC): 85 - 300VAC or 147 - 520VAC
  • Output Power (kW): max 9.6kW
  • Output Voltage (VDC): 120VDC and 240VDC
  • Compact (4RU) Complete Solution
  • Used with RT12 120V or RT12 240V
  • 19″ Rack Mount with Zero Clearance Above & Below
  • Earth Leakage Detection
  • SNMP, Modbus and DNP3 Available
  • Optional Battery Cell Monitoring and Mains Monitoring
  • Automatic Battery Discharge Test

Brochure & Ordering Guide
System Drawings

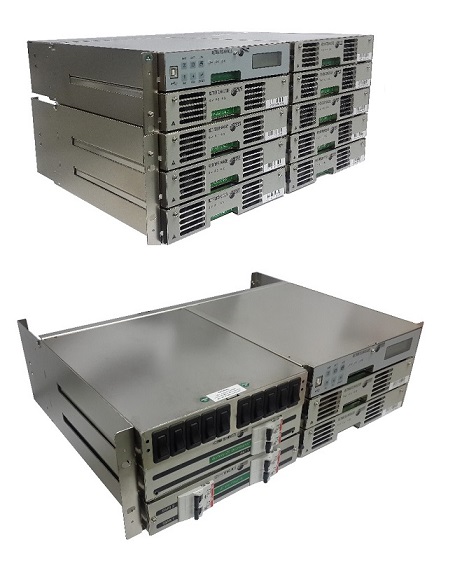

Low Voltage DC Power – 9.6kW

  • Input Voltage (VAC): 85 - 300VAC or 147 - 520VAC
  • Output Power (kW): 9.6kW ++
  • Output Voltage (VDC): 12VDC, 24VDC, 32VDC and 48VDC
  • Compact Complete Solution
  • Used with RT9, RT10 and RT11
  • 19″ Rack Mount with Zero Clearance Above & Below
  • Earth Leakage Detection
  • SNMP, Modbus and DNP3 Available
  • Optional Automatic Battery Disconnect
  • Optional Battery Cell Monitoring and Mains Monitoring
  • Automatic Battery Discharge Test


System Drawings (24V 4.2kW Powershelf)
System Drawings (48V 7.2kW Powershelf)
