RT22 50kW EV Charger Module
image description
Input voltage (VAC) 380 – 480VAC
Output power (kW) 50.0 kW
Output voltage (VDC) 50 - 1000VDC
Product datasheets

The 50kW EV Charger Module is a high-efficiency AC-DC power module designed to charge electric vehicles (EVs) using DC from a 3-phase supply. Strategically sized at 50kW to suit desired charger power classes with a wide output range enables charging from 50 to 1000VDC to match any EV battery. RT22’s unique built-in reactive power control feature maintains stable grid voltage levels without additional network upgrades.

Key Features:

    • Scalable from 50kW to 500kW or more
    • Max efficiency >96%
    • Adjustable Power Factor Control
    • Modular & Hot-pluggable
    • Isolated module
    • Weight <50kg
    • Dimensions: 482.6(W) x 175(H) x540(D) mm

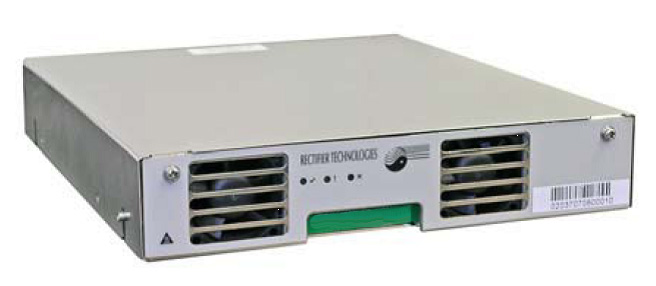

RT12
image description
Input voltage (VAC) 100 - 240VAC
Output power (kW) 2.4kW
Output voltage (VDC) 120, 240VDC
Product datasheets

The RT12 module is a 2.4kW single phase, switched-mode rectifier known for its robustness and suitability for industrial applications. Its output voltages in 60VDC (output current de-rated), 120VDC and 240VDC are commonly used in substations as switch-tripping battery chargers. The addition of a MCSU-4 controller allows a sophisticated power system to be built with network connectivity and remote asset management features.

Key Features:

    • Scalable from2.4kWto 96.0kW or more
    • Max efficiency > 92%
    • Modular & Hot-pluggable
    • Active power factor corrected
    • Isolated module
    • Weight < 2.5 kg
    • Dimensions:216(W) x43(H) x255(D) mm
    • Available also in 4U and 6U PACQ
    • Power shelves systems
RT18
image description
Input voltage (VAC) 187 - 242VAC
Output power (kW) 8.6kW
Output voltage (VDC) 240, 400VDC
Product datasheets

The RT18 is a single phase, high voltage switched mode rectifier offering high-reliability and high efficiency at 96%. It is suitable for applications such as Electric Vehicle Charging, Internet Data Center Power Systems and DC UPS. The additional of a MCSU-4 controller allows power system management with network connectivity and advanced rectifier sleep mode functionality for additional power saving.

Key Features:

    • Scalable from 8.6kW or more
    • Max efficiency > 95.5%
    • Modular & Hot-pluggable
    • Isolated module
    • Weight < 11kg
    • Dimensions:178(W) x88(H) x640(D) mm
RT11
image description
Input voltage (VAC) 100 – 245VAC
Output power (kW) 2.4kW
Output voltage (VDC) 48VDC
Product datasheets

The RT11 module is a 2.4kW single-phase, switched-mode rectifier. The RT11 is commonly found in critical and remote sites, trusted for its extremely low field failure rate. This rectifier has been designed for use in conjunction with a battery to provide an uninterruptible DC power system (UPS). The addition of a MCSU-4 controller allows a sophisticated power system to be built with network connectivity and remote asset management features.

Key Features:

    • Scalable from2.4 kW to 96.0kW or more
    • Max efficiency > 91%
    • Modular & Hot-pluggable
    • Isolated module
    • Weight < 2.5kg
    • Dimensions:216(W) x43(H) x255(D) mm
    • Available also in 4U and 6U PACQ Power shelves systems
RT 4B
image description
Input voltage (VAC) 150 – 275 VAC
Output power (kW) 1.4kW
Output voltage (VDC) 24, 48, 110VDC
Product datasheets

The RT4B module is a 1.4kW convection cooled switched-mode rectifier. The low noise and high reliability make it ideally suited to telecommunications and switch room environments. Designed for use in conjunction with a battery to provide an uninterruptible DC power system (UPS). The addition of a MCSU-4 controller allows a sophisticated power system to be built with network connectivity and remote asset management features.

Key Features:

    • Scalable from 1.4 kW or 56.0 kW more
    • Max efficiency > 90%
    • Modular & Hot-pluggable
    • Isolated module
    • Convection cooled
    • Weight < 6kg
    • Dimensions:87(W) x266(H) x320(D) mm
RT9
image description
Input voltage (VAC) 100 – 245VAC
Output power (kW) 1.4kW
Output voltage (VDC) 12, 24, 32, 48VDC
Product datasheets

The RT9 was the pioneer of the ‘Compact Series’ known for its extremely low field failure rates and designed for many critical applications where reliability and low-downtime is valued. RT9 is a 1.4kW single-phase, switched-mode rectifier and can be connected in parallel to make high powered systems and can be used in conjunction with a battery to provide an uninterruptible DC power system (UPS).

Key Features:

    • Scalable from1.4 kW to56.0 kW or more
    • Max efficiency > 90%
    • Modular & Hot-pluggable
    • Isolated module
    • Weight < 2.3kg
    • Dimensions:216(W) x43(H) x255(D) mm
    • Available also in 4U and 6U PACQ Power shelves systems
RT7
image description
Input voltage (VAC) 320 – 530VAC
Output power (kW) 6.0kW
Output voltage (VDC) 48, 120, 240VDC
Product datasheets

The RT7 is a 3 phase (no neutral), active power factor corrected, switched-mode rectifier. Developed initially for the telecom industry, its derivations in 120V and 240V found application in defence, utilities, and oil & gas. An update of this stable platform is now available in the RT7E, offering a full backward compatibility at greater than 97% efficiency.

Key Features:

    • Scalable from 6kW to 60.0kW or more
    • Max efficiency > 91%
    • Modular & Hot-pluggable
    • Active power factor corrected
    • Isolated module
    • Weight < 19kg
    • Dimensions: 441( W) x 86(H) x 458(D) mm
RT7e
image description
Input voltage (VAC) 304 - 530VAC
Output power (kW) 6.0kW
Output voltage (VDC) 43 - 60VDC
Product datasheets

The RT7e is fully backward compatible with the original RT7, offering users a higher efficiency >97%. Its unique 3 phase input handling and unparalleled reliability has captured the attention of users throughout the telecoms and defence industries. The addition of a MCSU-4 controller allows sophisticated power system management with network connectivity and advanced rectifier sleep mode functionality for additional power savings.

Key Features:

    • Scalable from6kWto 60.0kW or more
    • Max efficiency > 97%
    • Modular & Hot-pluggable
    • Isolated module
    • Weight < 15kg
    • Dimensions:441(W) x86(H) x458(D) mm
